10DVG

Semi-automatic
Less than 0.5% residual oxygen
316 Stainless Steel construction
Fully enclosed chamber for extremely low vacuum
Adjustable vacuum and gassing pressures

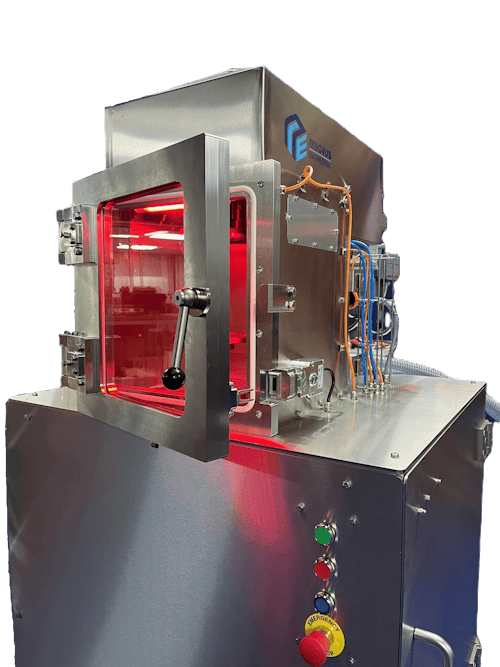

The 10DVG Seamer, is an all stainless steel, modified atmosphere, can closing machine. Designed with the most stringent safety and hygiene requirements in mind, the 10DVG is the premium slow speed vacuum and gassing seamer on the market.

Optimised for oxygen sensitive products, the 10DVG is capable of closing cans with less than 0.5% residual oxygen.

The atmospheric pressure is monitored using a stainless steel hygienic tri-clamp pressure sensor. A solenoid valve opens to allow the chamber to be evacuated, using the built in vacuum pump. Another solenoid controls the input of nitrogen into the chamber after the evacuation. The desired pressure settings can be easily adjusted on the Siemens touchscreen HMI.

Height changes are possible in just a few minutes using the easy to adjust lifter shaft clamp. Pin height gauges allow operators to quickly set the head height without needing to fine adjust the setting.

Can diameter changes take just 15 minutes to complete a full changeover. The lid holder plate, lifter plate and seamer tooling are all easily accessible and easy to remove.

Operation is extremely simple; just place a filled can with loose lid onto the lifter plate. Close the door, then press and hold the operator safe twin buttons for the duration of the cycle, before the can lowers back to the home position.

The major advantage of the 10DVG is the fully enclosed chamber, whilst also holding the end off the can during the vacuum and gassing process for uninterrupted vacuum of the can.

Technical Data

Compressed air input: 10 mm hose push in connector / 1/2" BSP / 10 bar max./ 6 bar min
Nitrogen input: 1/2" BSP thread
Power supply : 3-phase 400 V / 50-60Hz, current consumption 16A max.
Dimensions: 600 x 900 x 1600 mm (W x D x H)
Net weight : 250kg
