CF15
- Automatic
- 1000 cans per hour
- Compact footprint
- Inbuilt pressure monitoring
- Dissolved oxygen pickup < 20ppb
- Can sizes 150-500ml

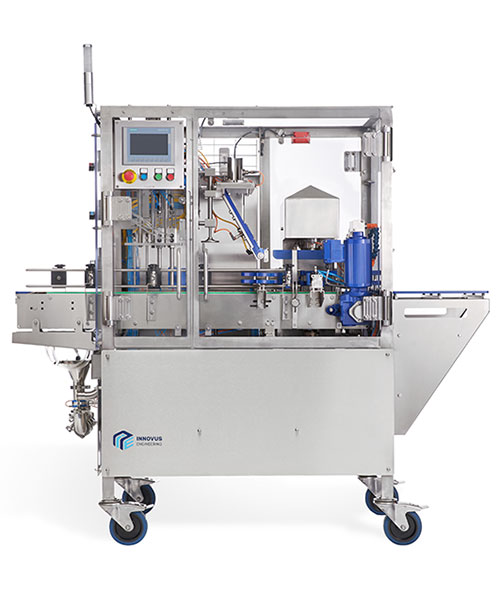

The CF15 is a fully automated canning line for filling and closing aluminium standard, sleek or slim beer and beverage cans. It comprises a two head filling gantry with pre-purge and post-fill gas injection and a single head motor driven mechanical can seamer. The machine is manufactured fully from food grade 304 and 440C stainless steel and food grade plastic, with the most resistant grade 316 stainless steel used in contact areas. This ensures robustness and a high level of hygiene as well as the safe use of caustic and other cleaning agents. Lubrication uses a food grade grease.

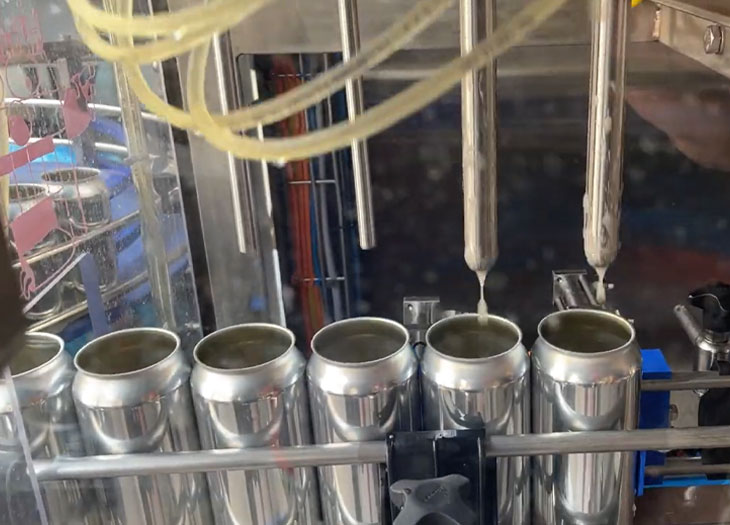

Filling is fully adjustable by time; optimised by the inbuilt brite tank pressure monitor for extremely consistent filling levels. A central conveyor system with can guides provides smooth transfer of cans, minimising sloshing and dissolved oxygen pick up. The height adjustable lid dispenser feeds into the seaming head and mechanical cam driven seaming ensures the highest seam integrity. Seaming rolls have sealed for life bearings and run on the vacuum hardened cam profiles. After the seaming station, the cans are rinsed and dried. The Siemens control system and touch screen gives the operator full flexibility over the canning line. A temperature and pressure sensor feed live information to the touch screen display, for monitoring the condition of the incoming beverage product.
For mobility and versatility, the CF15 is supplied on heavy duty castors. It can be operated by two people manually loading and unloading cans, or by one operator if the optional rotary tables are installed. The seamer can be adjusted in just a few seconds to change between different can heights.
Technical Data
Compressed air input: 10 mm hose push in connector / 3/8" BSP / 10 bar max./ 6 bar min / Maximal consumption of 150L min
Carbon dioxide input: 3/8" hose push in connector (John Guest) / BSP thread 3/8"
Power supply : 1-phase 240 V / 50-60Hz, current consumption 13A max.

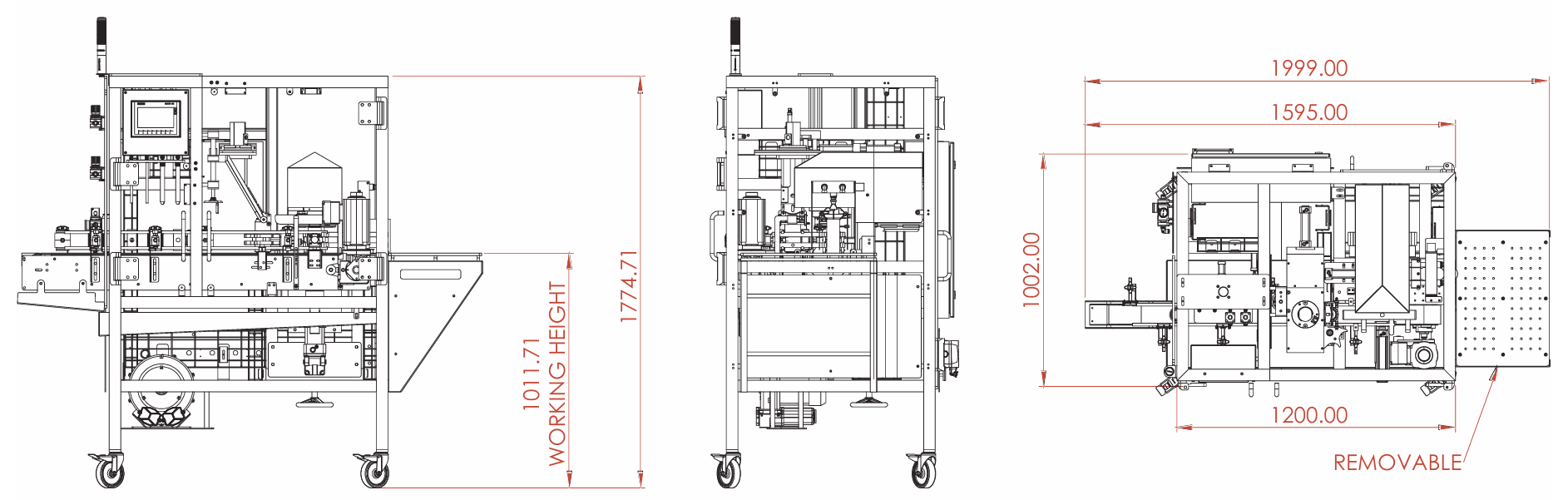

Dimensions: 1595 x 1002 x 1775 mm (W x D x H)
Net weight : 400kg
