Rotary Tables

Variable speed
Compact footprint
Approx 160 cans capacity
Stainless steel & food grade plastic construction

The rotary collection and rotary infeed tables increase the automation and efficiency of the packaging line by a) allowing the operator to preload approximately 160 cans which are then automatically fed via conveyor to the canning machine, and b) providing capacity to collect approximately 160 filled cans after they leave the canning machine, therefore freeing up the operator for other tasks. Manufactured from all stainless steel and food-grade plastic, and with quick adjust variable speed, the rotary tables are highly robust units with which the efficiency returns on offer vastly outweigh the modest investment required.

Technical Data

Power supply: 1-phase 240 V / 50-60Hz, current consumption 13A max.

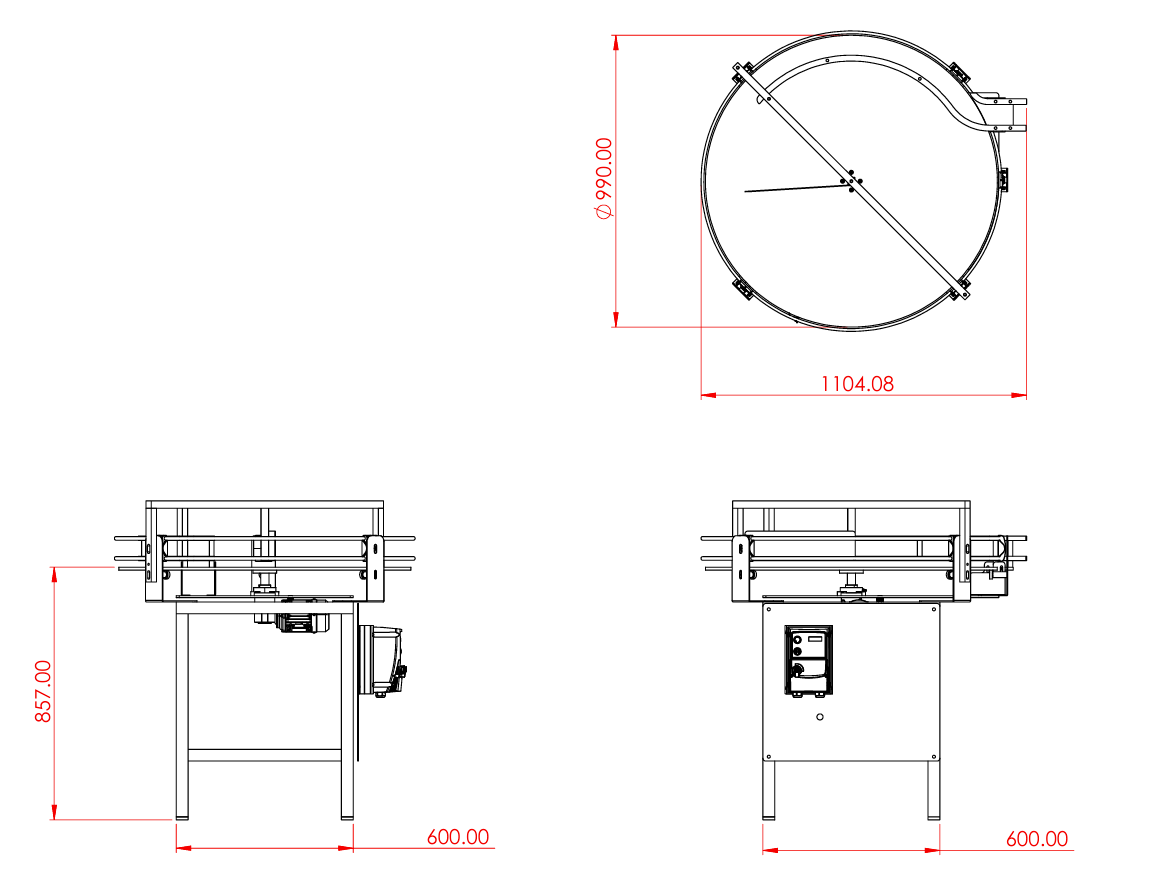

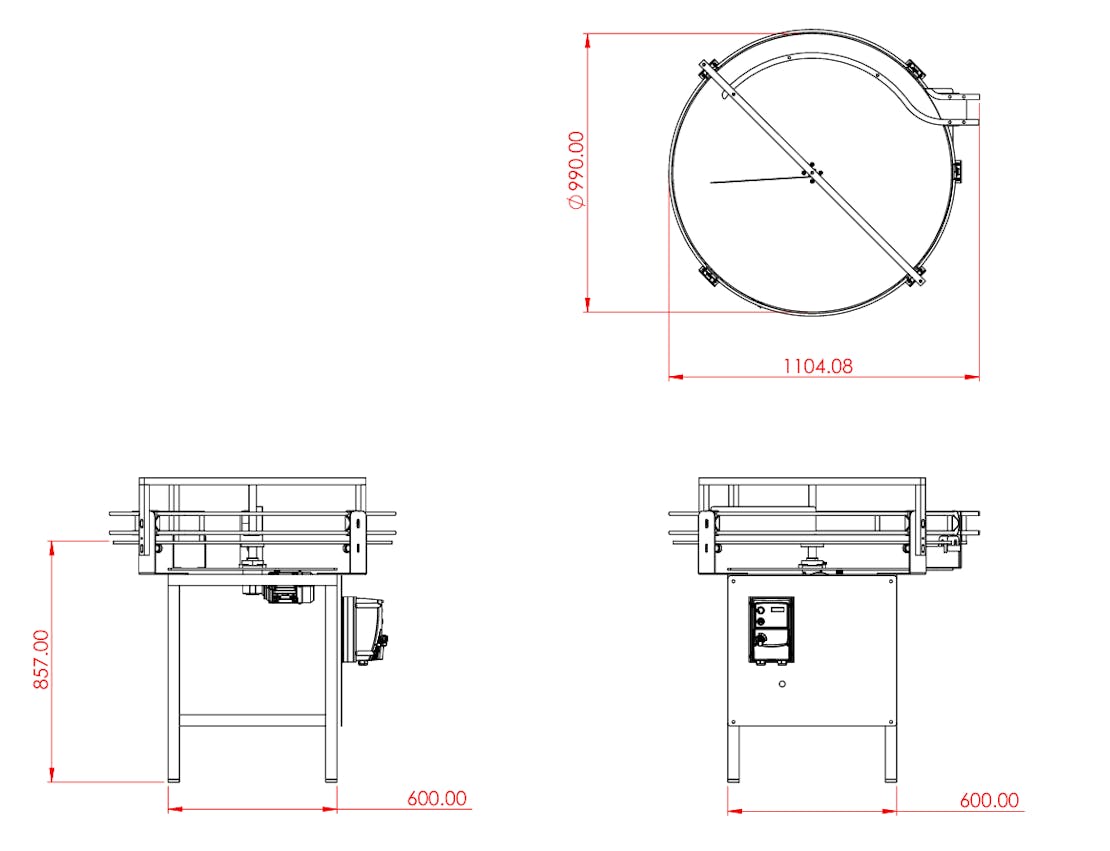

Dimensions: 1104 x 990 x 961 mm (W x D x H)
Net weight : 120kg
